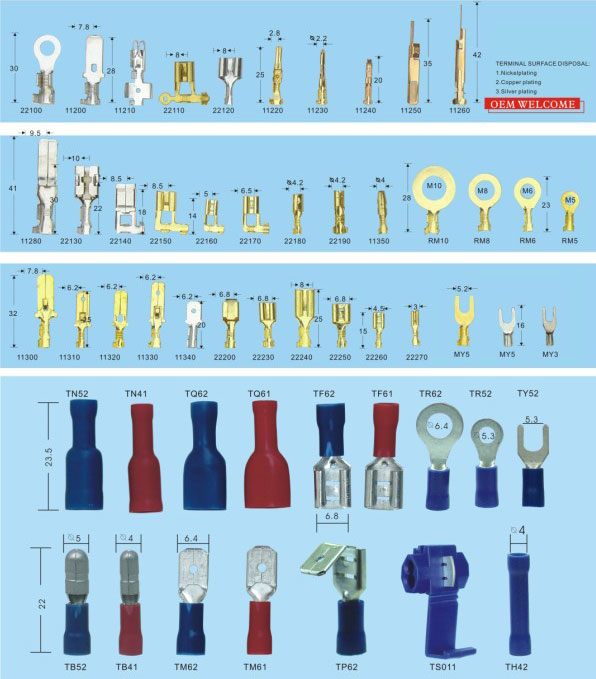

Kabelverbinder isoliert
| NO. | d2 | B | L | D |
| TR41 | 4.3 | 8 | 21.7 | 4.3 |
| TR51 | 5.3 | 8 | 21.7 | |
| TR61 | 6.4 | 11.6 | 27.6 | |
| TR81 | 8.4 | 11.6 | 27.6 | |
| TR91 | 10.5 | 13.7 | 31.5 | |
| Wire Range:0.25~1.65 mm2 | ||||
| TR42 | 4.3 | 8.5 | 23 | 4.9 |
| TR52 | 5.3 | 8.5 | 23 | |
| TR62 | 6.4 | 12 | 28.1 | |
| TR82 | 8.4 | 12 | 28.1 | |
| TR92 | 10.5 | 13.7 | 31.9 | |
| Wire Range:1.0~2.63 mm2 | ||||
| TR53 | 5.3 | 9.5 | 26.5 | 6.7 |
| TR63 | 6.4 | 12 | 32.7 | |
| TR83 | 8.4 | 15 | 34.9 | |
| TR93 | 10.5 | 15 | 34.9 | |
| Wire Range:2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | d | D | C | L |
| TY41 | 4.3 | 6.4 | 22 | 4.3 |
| TY51 | 5.3 | 8 | 22 | |
| TY61 | 6.4 | 10.8 | 23 | |
| Wire Range:0.25~1.65 mm2 | ||||
| TY42 | 4.3 | 6.4 | 22.5 | 4.9 |
| TY52 | 5.3 | 8 | 22.5 | |
| TY62 | 6.4 | 10.8 | 23.5 | |
| Wire Range:1.0~2.63 mm2 | ||||
| TY43 | 4.3 | 8.2 | 26.7 | 6.7 |
| TY53 | 5.3 | 9 | 26.7 | |
| TY63 | 6.4 | 12 | 30.7 | |
| Wire Range:2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | d | D | C | L |
| TH41 | 4 | 5.5 | 4.5 | 24 |
| TH51 | 4.1 | 5.6 | 4.9 | 25 |
| TH61 | 4.1 | 5.6 | 4.9 | 25 |
| Wire Range:0.25 ~1.65 mm2 | ||||
| TH42 | 4 | 5.5 | 4.5 | 24 |
| TH52 | 4.5 | 6.1 | 5.2 | |
| TH62 | 6.5 | 8 | 7.1 | 26 |
| Wire Range:1.0~2.63 mm2 | ||||
| TH43 | 6.5 | 8 | 7.1 | 26 |
| TH53 | 6.6 | 8.1 | 7.1 | 27 |
| TH63 | 6.6 | 8.1 | 7.1 | 27 |
| Wire Range:2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | B | L | D | E |
| TM41 | 4.8 | 21.5 | 3.6 | 10 |
| TM61 | 6.35 | 21.5 | 3.6 | 10 |
| Wire Range:0.25 ~1.65 mm2 | ||||
| TM42 | 4.8 | 21.5 | 4.4 | 10 |
| TM62 | 6.35 | 21.5 | 4.4 | 10 |
| Wire Range:1.0~2.63 mm2 | ||||
| TM43 | 4.8 | 23.5 | 5.4 | 13 |
| TM63 | 6.35 | 23.5 | 5.4 | 13 |
| Wire Range:2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | B | L | D | E |
| TQ51 | 5 | 19.5 | 3.6 | 10 |
| TQ61 | 6.8 | 20.5 | 3.6 | 10 |
| Wire Range:0.25 ~1.65 mm2 | ||||
| TQ52 | 5 | 19.5 | 4.4 | 10 |
| TQ62 | 6.8 | 21.5 | 4.4 | 10 |
| Wire Range:1.0~2.63 mm2 | ||||
| TQ62 | 6.8 | 24.5 | 5.4 | 13 |
| Wire Range:2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | B | L | D | E |
| TF51 | 5 | 19 | 3.6 | 10 |
| TF61 | 6.8 | 21 | 3.6 | 10 |
| Wire Range:0.25 ~1.65 mm2 | ||||
| TF52 | 5 | 19 | 4.4 | 10 |
| TF62 | 6.8 | 21 | 4.4 | 10 |
| Wire Range:1.0~2.63 mm2 | ||||
| TF53 | 5 | 22 | 5.4 | 13 |
| TF63 | 6.8 | 24 | 5.4 | 13 |
| Wire Range:2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | B | D | F | L |
| TB41 | 4 | 3.6 | 11 | 21 |
| Wire Range :0.25 ~1.65 mm2 | ||||
| TB42 | 4 | 4.4 | 11.5 | 21 |
| TB52 | 5 | 4.4 | 11.5 | 21.5 |
| Wire Range :1.0 ~2.63 mm2 | ||||
| TB43 | 4 | 5.4 | 12 | 25 |
| TB53 | 5 | 5.4 | 12 | 25 |
| Wire Range: 2.63 ~6.64 mm2 | ||||
  |
||||
| NO. | B | b | L | D |
| TN41 | 4 | 5.7 | 21 | 3.6 |
| Wire Range :0.25 ~1.65 mm2 | ||||
| TN42 | 4 | 5.7 | 22 | 4.4 |
| TN52 | 5 | 6.3 | 22 | 4.4 |
| Wire Range :1.0 ~2.63 mm2 | ||||
| TN43 | 4 | 6.6 | 24.5 | 5.4 |
| TN53 | 5 | 6.6 | 22 | 4.4 |
| Wire Range: 2.63 ~6.64 mm2 | ||||
  |
|||||
| NO. | A | L | C | B | w |
| TS010 | 4 | 31.2 | 10.6 | 4 | 19.6 |
| Wire Range 0.25~1.65 mm2 | |||||
| TS011 | 4 | 31.3 | 10.6 | 4 | 19.6 |
| Wire Range 1.0~2.63 mm2 | |||||
  |
||||
| NO. | B | b | L | D |
| TP61 | 6.5 | 6.3 | 22.5 | 4.7 |
| Wire Range 0.25~1.65 mm2 | ||||
| TP62 | 6.5 | 6.3 | 23 | 4.9 |
| Wire Range 1.0~2.63 mm2 | ||||
| TP63 | 6.5 | 6.3 | 25 | 6.5 |
| Wire Range2.63~6.64 mm2 | ||||
    |
||
| Code | Box Type | Dimension |
| 20TQ60 | FS20 | 30PCS/Box |
| 21TH42 | FS21 | 30PCS/Box |
| 07TS011 | FS207 | 10PCS/Box |
| TB52 | Plastic Bag Packaging | 25PCS/Bag |
